MACHINING (5).webp

A53

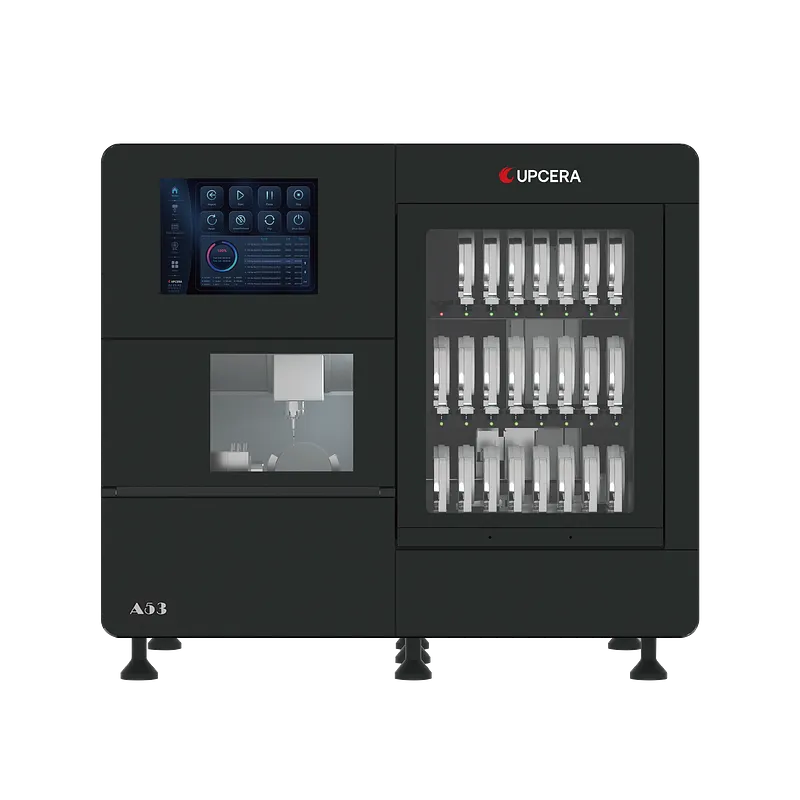

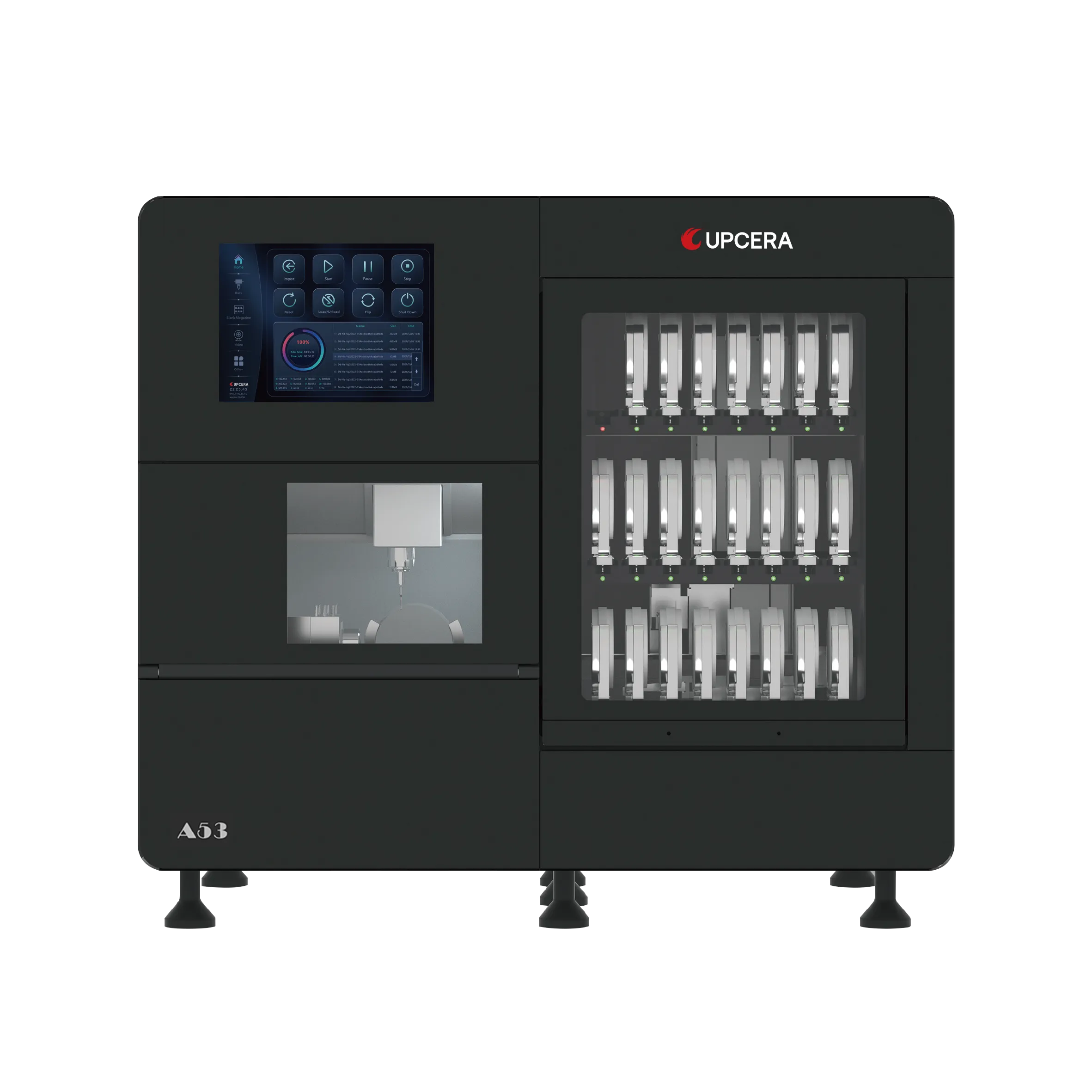

5-Axis Disc Changer Milling Machine

Consult now>>

UPCERA

  • A53

    · Internet of Things (loT) technology
    · 12-inch touch screen
    · Outstanding stability and high accuracy
    · Premium spindle with automatic tool changer
    · Real-time monitoring
    · High-performance castings,aerospace aluminum alloys
    · Low air pressure protection
    · 24/7 non-stop machining

  • A53

Materials


Device Parameters

Dimensions

100*70*85cm

Weight

220kg

Voltage

220v 50Hz

Power

1.5kw

Compatible Compressed Air

0.55-0.8 MPa

Spindle Speed

80,000rpm

Tilt Angle

A-axis +33°/-95°, B-axis ±360°

Precision

<0.01mm

Number of Bur

12

Blank Tank

24

Cooling Type

Air Cooling

Materials

Zirconia, Wax, PEEK, PMMA (Φ98.5mm, thinkness of 10mm-30mm)

Milling Speed

Zirconia, PEEK, PMMA (10 minutes/ pc), Wax ( 3 minutes/pc), Framework (Wax, 45 minutes/pc)

Application

Coping, full crown, bridge, inlay, onlay, veneer, post-core crown, telescopes, personalized abutment, hybrid implant bridge, denture

Downloads

A53-2025.pdf

961 KB

Any questions, requests or suggestions? Please feel free to contact us at any time
